DGF series filling machine is a professional machine, which is special designed for carbonated drink. It is multifunctional, which can be used for washing ,filling and capping. It is a kind of advanced filling machine integrator, which is innovated following the process requirements of filling gassy beverage based on the importing and assimilating the foreign advanced technology. It is applied mostly in washing, filling, and capping plastic cap for soda, cola, champagne and sparkling water. It is the perfect selection to a beverage factory due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.

Main Features

1. Machine has compact structure, good appearance, ease operation, high automatism and low labor intensity.
2. Bottle transportation adopt neck handling technology, not need to adjuster height, only replace relative parts, such as arc board, thumb etc.
3. Special design for bottle rinser gripper, with full stainless steel structure, it does not contact with the bottle neck thread spot, avoids the second pollution.
4. All the parts which contact with the material directly is made of food grade stainless steel, easy to clean.
5. Uses pneumatic butterfly valve to control liquid flow, which can guarantee low liquid level changes inside the tank and high filling precision.
6. Open valve device is driven by the air cylinder, according to bottle signal to open the valve timely, action is accurate and reliable.
7. High speed and high flow rate, high accuracy filling valve, high filling speed, stable liquid level.
8. Capping heads adopt magnetism permanent torque device, which can guarantees the quality of sealing cap, and also it will not damage the cap.
9. Uses the high effective cap sorter and automatic cap feeding system. It has perfect cap feeding and cap protection device.
10. Bottle outlet thumb wheel adopts the spiral-down way. There is no need to adjust the bottle conveyor height when changing the bottle shape.
11. Equipped with perfect over-load protection. It can protect the machine and operator's security effectively.
12. Main electrical parts, electrical control valve, frequency inverter etc. adopt famous foreign brand product to insure the quality.
13. All the components in the air system adopt famous foreign brand product.

Machine Part

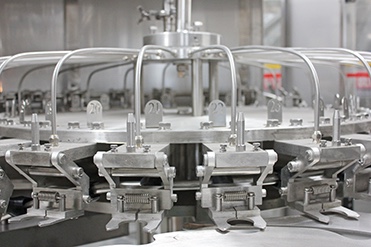

Name: Bottle washing module

Material: 304 Stainless steel

Bottle neck lock part features: bottle locking steady and low bottle neck damage

Water jetting nozzle features: high-efficiency bottle washing and low water consumption

Bottle conveying star wheel features: high-speed bottle conveying and low bottle neck damage

Machine part

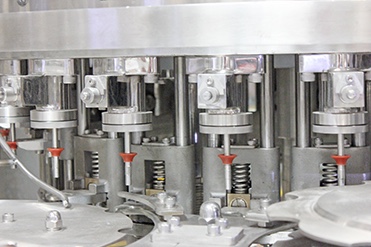

Name: Bottle filling module
Material: 304 Stainless steel
Liquid tank features: Inside and outside of liquid tank is polished

Filling valves features: Flow rate can be adjusted and controlled accurately

Machine Part

Name: Bottle capping module
Material: 304 Stainless steel
Capping positions features: cap sealing movement accurately with lower cap damage

Machine Part

Name: Pneumatic valve
Function: Contact the carbonated drink mixing machine and the carbonated drink filling machine. It is used to control the flow rate from the mixing machine and it can keep the liquid flow steady.
